THE MANUFACTURING OF ORGAN BLOWERS AND OTHER HIGH-PRESSURE CENTRIFUGAL FANS

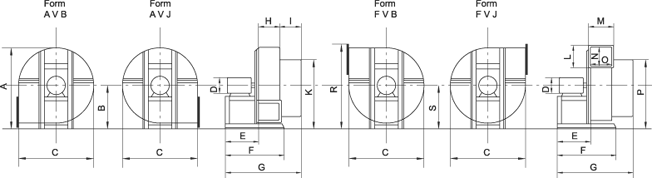

DIMENSIONS FOR MOUNTING OF ORGAN BLOWERS OF TYPE LVM4

1400 rotations/minute 50 Hz
Pressure range: 120 mm water column
Type: 3-ph.A.C., marked * type are with 1-ph.A.C. 230 V too
TYPE
A
B
C
D
E
F
G
H
I
K
L
M
N
O
P
R
S
LVM4-008*
 805 450
744
 200 345 495 650 120 185 635 170 160 110
100
600
830
415
LVM4-014*
 805 450 744
 200 345 525 695 150 200 635 200 190 140 130
 600 830
 415
LVM4-021*
 875 505 814 200 380 590 785 180 225 710 260 220 200 160 635 895
 430
LVM4-028
 875 505 814 200 380 590 785 180 225 710 260 220 200 160 635 895
 430
LVM4-035
 875 505 814 200 400 610 805 180 225 710 260 220 200 160 635 895
 430
LVM4-043
 1115 640 1054 200 400 670 900 240 260 885 380 280 320 220 785 1140
 540
LVM4-052 1115 640 1054 200 400 670 900 240 260 885 380 280 320 220 785 1140
 540
LVM4-062
 1115 640 1054 200 400 670 900 240 260 885 380 280 320 220 785 1140
 540
